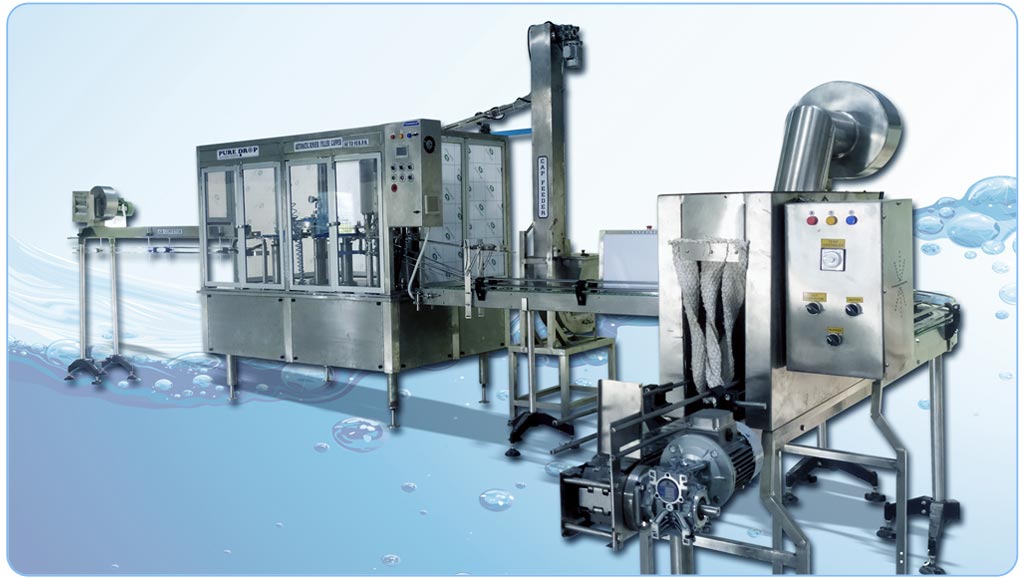

Automatic Rinsing, Filling & Capping Machine
SPECIAL FEATURES:

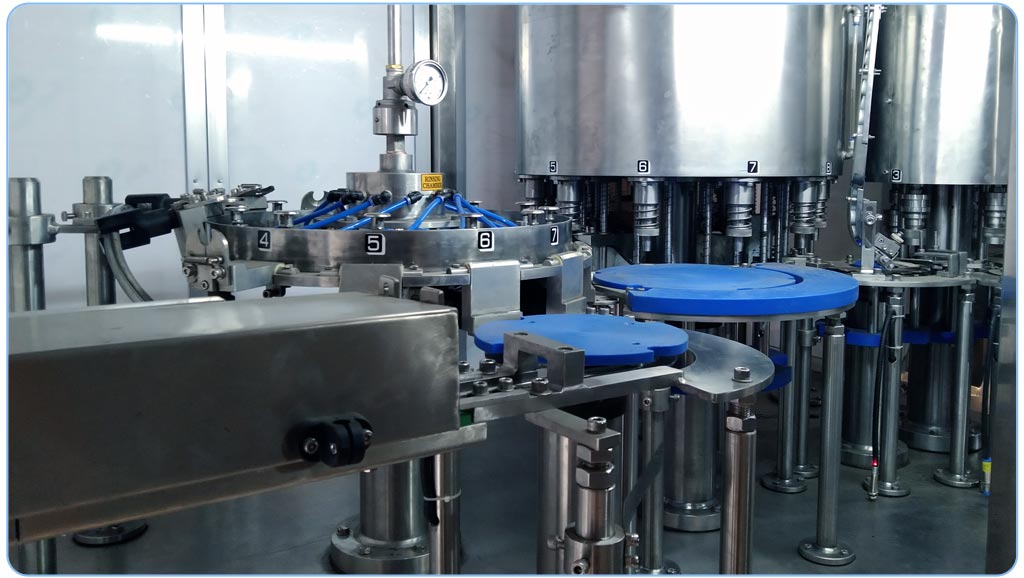

- Mono Block rotary machine
- Neck holding
- No bottle no rinsing no filling and no capping
- Non contact sensors for bottle counter
- Separate Cap Hopper Having Capacity 1000 caps
- Material of Contractions contact parts SS316L rest SS304
- Inbuilt Shrink Tunnel
| Sr. No. |
MODEL (PDASL (BPM)) | 30 - 50 | 40 - 60 | 60 - 90 | 90 - 120 | 120 - 150 | 150 - 200 |
|---|---|---|---|---|---|---|---|
| 1 | Output (Lit / hr) | 1800 - 3000 | 2400 - 3600 | 3600 - 5400 | 5400 - 7200 | 7200 - 9000 | 9000 - 12000 |
| 2 | Configration Rinse - Filler - Capper | 6 - 6 -3 | 8 - 8 - 4 | 12 - 11 - 4 | 15 - 15 - 6 | 20 - 20 - 8 | 36 - 26 - 10 |
| 3 | Bottle Size Range | 200 to 2000 ml | |||||
| 4 | In Feed Air Conveyor (Meter / Feet) | 1.5 M / 5' | 1.5 M / 5' | 2.4 M / 8' | 2.4 M / 8' | 2.4 M / 10' | 2.4 M / 16' |
| 5 | Out Feed SS Slat Conveyor (Meter / Feet) | 3M / 15' | 3M / 15' | 4.5M / 20' | 4.5M / 20' | 4.5M / 25' | 4.5M / 30' |
| 6 | Machine Type | Mechanical | |||||
