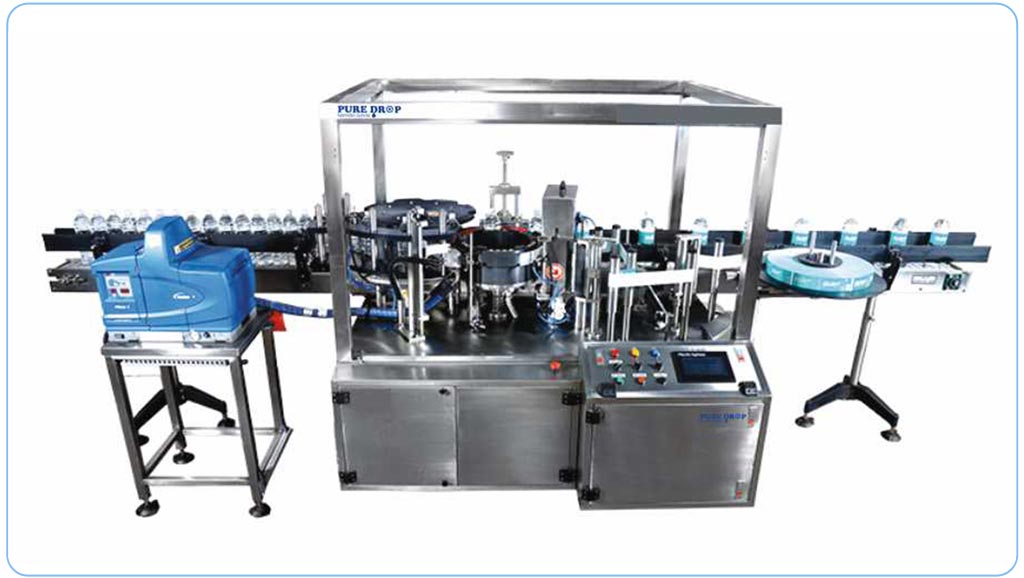

Automatic Bopp Labelling Machine
SPECIAL FEATURES:
- Durable and compact design, the machine frame is covered by stainless steel sheet, anti-vibration and noise absorbing construction.
- Rotary machine design, the bottle turret by servo motor (Fuji japan make)
- Control cabinet integrated in the machine housing
- Hot melt dispensing contact type labeling system
- Label cutting with eye mark as well as length in mm
- Cutter is easy adjustment and replacement, cutting at any speed with precision
- Vacuum drum is synchronized with platform rotation, driven by servo motor (fuji japan make)
- Label web tracking for correcting its height and guarantee the consistent position
| Sr.No. | MODEL | PDASB 90 - 120 | PDASB 120 - 150 |
|---|---|---|---|
| 1 | Output / hr | 5400 - 7200 | 7200 - 9000 |
| 2 | Bottle Diameter | 50 mm to 100 mm | 50 mm to 100 mm |
| 3 | Bottle Height | 160 mm to 320 mm | 160 mm to 320 mm |
| 4 | Diameter of Label Roll | Core 150 mm, Outer 500 mm | Core 150 mm, Outer 500 mm |
